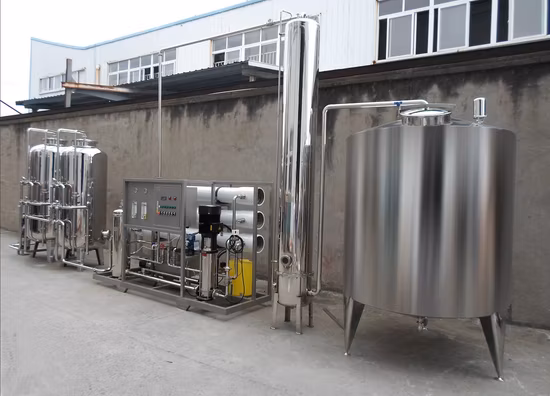

Reverse Osmosis Water Treatment Facility
Water treatment facility Ultrafiltration film technology introduction Ultrafiltration film is a film filtering between m
Description
Basic Info
| Model NO. | WTRO |
| Principle | Reverse Osmosis,Ultrafiltration |
| Force | Pressure Difference |
| Recovery Rate | (Permeate Flow / Feed Flow) X 100% |
| Material | UPVC+Stainless Steel/FRP |
| Warranty | One Year |
| Transport Package | Wooden Case |
| Specification | Pretreatment+RO system (1~200T/H) |
| Trademark | Wentong |
| Origin | Wenzhou, China |
| HS Code | 8421219990 |
| Production Capacity | 800sets/Year |
Product Description
Water treatment facility| Product name | ultrafiltration and RO system water treatment machine |
| Configuration | raw water tank,water pump,multi media filter,activated carbon filter,softener,cartridge filter,high pressure pump, UF unit, RO system,dosing system,washing pump and tank,pure water tank,ultraviolet sterilizer,meters,and other accessories. |
| Material | UPVC + Stainless steel,FRP |
| Application | water treatment,water purifying,water filtration,pure water for pharmaceutical,ultra pure water for electronics |
Ultrafiltration film technology introduction
Ultrafiltration film is a film filtering between micro-filtering and nanometer-filtering, which is applied to separation,concentration and purfication of substance.
It is generally characterized by the retention component in practical applications, and is mainly used to separate macromolecules, colloids and particles in solution from small molecular substances such as solvents.
Macromolecules, colloids and particles are trapped on the surface of the membrane, and are taken away by the circulation of the substance to form a concentrated solution, which achieves the purpose of substance separation, concentration and purification.
RO membrane technology introduction
Reverse osmosis is to separate the solvent (usually water) in the solution through a reverse osmosis membrane (or semi-permeable membrane) with sufficient pressure, so it is called reverse osmosis.Reverse osmosis, as an efficient desalination technology, can remove impurities such as inorganic ions, bacteria, viruses, organic matter and colloids in raw water to obtain high-quality purified water.According to the different osmotic pressure of various materials, the reverse osmosis method can be used to achieve the purpose of separation, extraction, purification and concentration.
RO SYSTEM
| Model | Capacity(LPH) | Power(kw) | RO membrane(8040 / 4040) |
| RO-1000 | 1000 | 2.5 | 4040 |
| RO-2000 | 2000 | 3.5 | |
| RO-3000 | 3000 | 4.5 | |
| RO-4000 | 4000 | 6.5 | 8040 |
| RO-5000 | 5000 | 8 | |
| RO-6000 | 6000 | ||
| RO-8000 | 8000 | 12 | |
| RO-10000 | 10000 | 18 | |
| RO-15000 | 15000 | ||
| RO-20000 | 20000 | 28 |
Process flow
Raw water → pre-treatment → RO system → precision filter → post-pretreatment → permeated water output and concentrate drain → ozone sterilizer → pure water tank storage
Single stage RO
Two-stage RO Water treatment equipment show
FAQ
1.
Q: What products you provide?
A: We are specialized in RO system, EDI system, UF system, Sewage water treatment equipment, etc.2.
Q: What's the information you need before order? A1: what's your raw water ? B1: what's the capacity per hour of the equipment ? C1: What's the application of purifier water ?3.
Q: How long is your delivery time?
A: Generally it is 30 days, Depends on your project.
